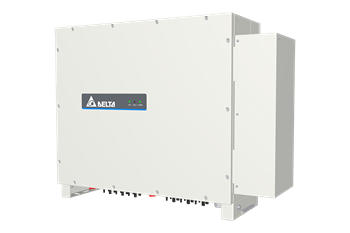

DP350U

Designed for large-scale solar plants, Delta's DP350U inverters utilize a highly compatible 1500 Vdc / 800 Vac system. They maximize energy generation with multiple MPPTs and overload design, ensuring peak performance even in high temperatures thanks to excellent heat dissipation. With a rapid reactive power response, they provide strong grid support, reducing construction costs and line losses.
Contact Us

Product Introduction

Key Benefits
  • Optimal Profitability and Relible Performance
  • Enhanced Grid Support
  • Advanced Operational Safety and Maintenance
Empowering the Grid with Dependable and Efficient Green Energy
utility-solar-inverter-DP350U-KV

Feature Highlights
utility-solar-inverter-DP350U-Feature Highlights

Optimal Profitability
and Performance

  • DC input voltage up to 1500 VDC
  • Up to 99% efficiency and 98.7% Euro efficiency
  • Optional Type I or Type I + II SPD

Reliable and
Dependable

  • Electrolytic capacitors free design improves product life and stability
  • IP65 protection
  • Operating temperature range from -30 to 60°C

Advanced Operational
Safety and Maintenance

  • Built-in DC switch, AC / DC Type II SPD and 20-string photovoltaic array
  • String monitoring function and Arc fault detection
  • IV curve scanning and night time anti-PID function
  • PRO EL function


Applications

Utility
